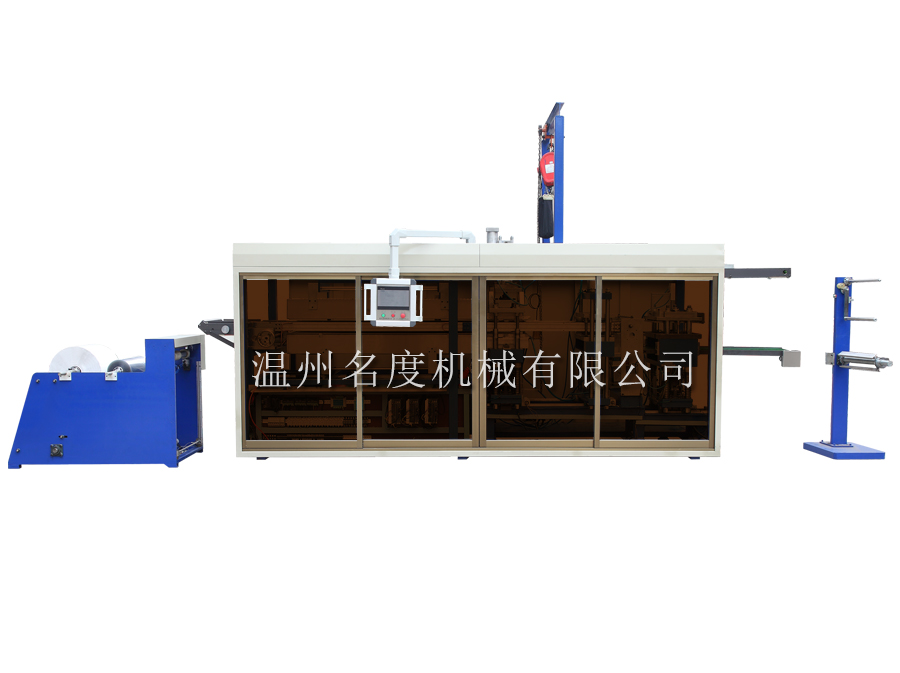

MODEL-500L MULTI-STATION THERMAL FORMING MACHINE
MODEL-500L多工位熱成型機(500mm*350mm)
|
technical parameter：技術參數型號 Model |
MODEL-500L多工位熱成型機 |
|
適用片材 Suitable Sheet |
PP, PVC, PS, PET, PLA, PSP. |
|
最大成型面積Largest Forming Area |
500mm*350mm |
|
片材最大寬度 Maximum Width |
520mm |
|
最大成型深度 Maximum Depth |
80mm |
|
整機功率 Power |
52Kw |
|
加熱箱長度 Heating Box Length |
1800mm |
|
加熱瓦張數 Heating Tiles Quantity |
112pcs |
|
工作氣壓 Air Pressure |
0.6-0.8Mpa |
|
生產速度 Production rate |
10-30模／分鐘（die／min） |
|
片材厚度 Depth of Sheet Material |
0.10mm-1.20mm |
|
整機重量 Weight |
3500Kgs |
|
機身尺寸 Overall Dimension |
5000mm*1300mm*1700mm（L*W*H） |
產品簡介: Introduction:
MODEL-500L多工位熱成型機是我司根據市場及客戶的需求而研發的新型機器。該機是一種多工位的自動機械，具有同步完成成型，沖孔，沖切，從而得到最終的塑料制品。 因此大大降低了勞動力和生產成本的投入，提高了工作效率。而且用途廣泛，可應用于五金、食品、藥品、化妝品等PS/PET/PV/PP塑料制品的生產。
MODEL-500L multi-station thermal forming machine is a new type of machine developed by our company according to the market and customer's demand. The machine is a kind of multi-station automatic machine, which has the synchronous complete forming, punching, and cutting, so easy to get the end plastic products. Therefore, the input of labor and the cost of production is greatly reduced, and the work efficiency is much more improved. It can be applied to metal, food, medicine, cosmetics and other PS/PET/PVC/PP plastic products.
主要特點：Main Features:
結構緊湊，運行平穩，操作簡單，維護方便;
伺服調整，人機觸摸屏界面;
行程任意可調,模具更換簡便;
可據用戶要求設計模具;
Compact structure, stable operation, simple operation, convenient maintenance;
Servo adjustment, interface touching screen;
Adjustable moving-trip, mould replacement is simple;
